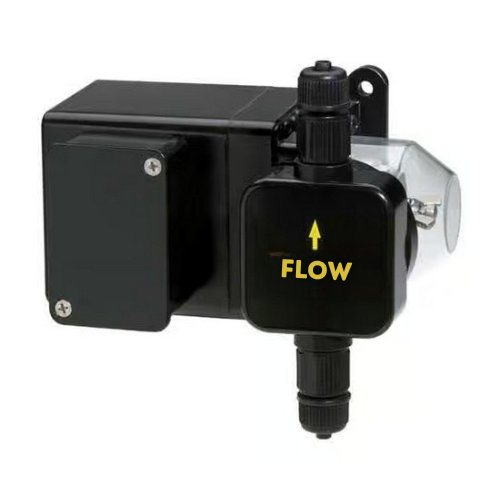

BW C-630P High-Performance Dosing Pump 115V

BW C-630P High-Performance Dosing Pump 115V

Engineered for precision and built to last, the BW C-630P-115V Dosing Pump is ideal for accurate microbe dosing in demanding agricultural industry. Featuring durable, resistant materials and a permanently lubricated gear motor, this pump ensures smooth, quiet, and continuous operation—even under high pressure.

Key Features:

• Max Pressure: 125 PSI

• Flow Rate: Up to 516 GPD

• Voltage: 115VAC / 60Hz

• Duty Cycle: Continuous

• Turndown Ratio: 27:1

• Stroke Adjustment: 4–100% for precise control

• Pump Head & Valve Body: PVDF construction for superior chemical resistance

• Seals: FKM with TFE/P O-rings

• Check Valves: Double-ball ceramic inlet/outlet design

• Diaphragm: PTFE-coated EP for durability and chemical compatibility

• Construction: Epoxy-coated metal body for long service life

Operating Specs:

• Max Fluid Temperature: 130°F

• Ambient Temp Range: 14°F – 110°F

• Max Viscosity: 1,000 Centipoise

• Max Suction Lift: 10 ft. of water

• Power Connection: Field-wired junction box

• Shipping Weight: Approx. 8 lbs (3.6 kg)

What’s Included:

• 3/8" OD x 1/4" ID suction and discharge tubing

• PVDF foot valve with ceramic check ball and removable strainer

• Spring-loaded injection check valve

• All necessary mounting hardware

Material Overview:

• Pump Head/Valves: PVDF (Optional: PTFE, Acrylic)

• Check Balls: Ceramic

• Seals & O-rings: FKM, TFE/P (Optional EP)

• Tubing: PVC suction, LLDPE discharge

• Injection Components: Polypropylene with Hastelloy C-276 spring (Optional: PVDF, PTFE)
